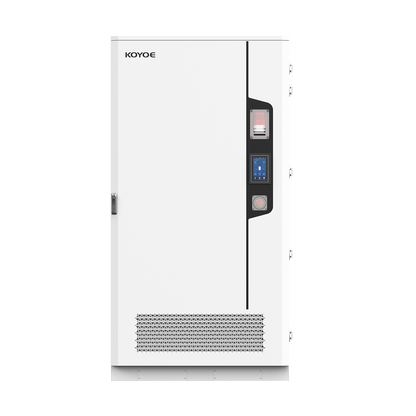

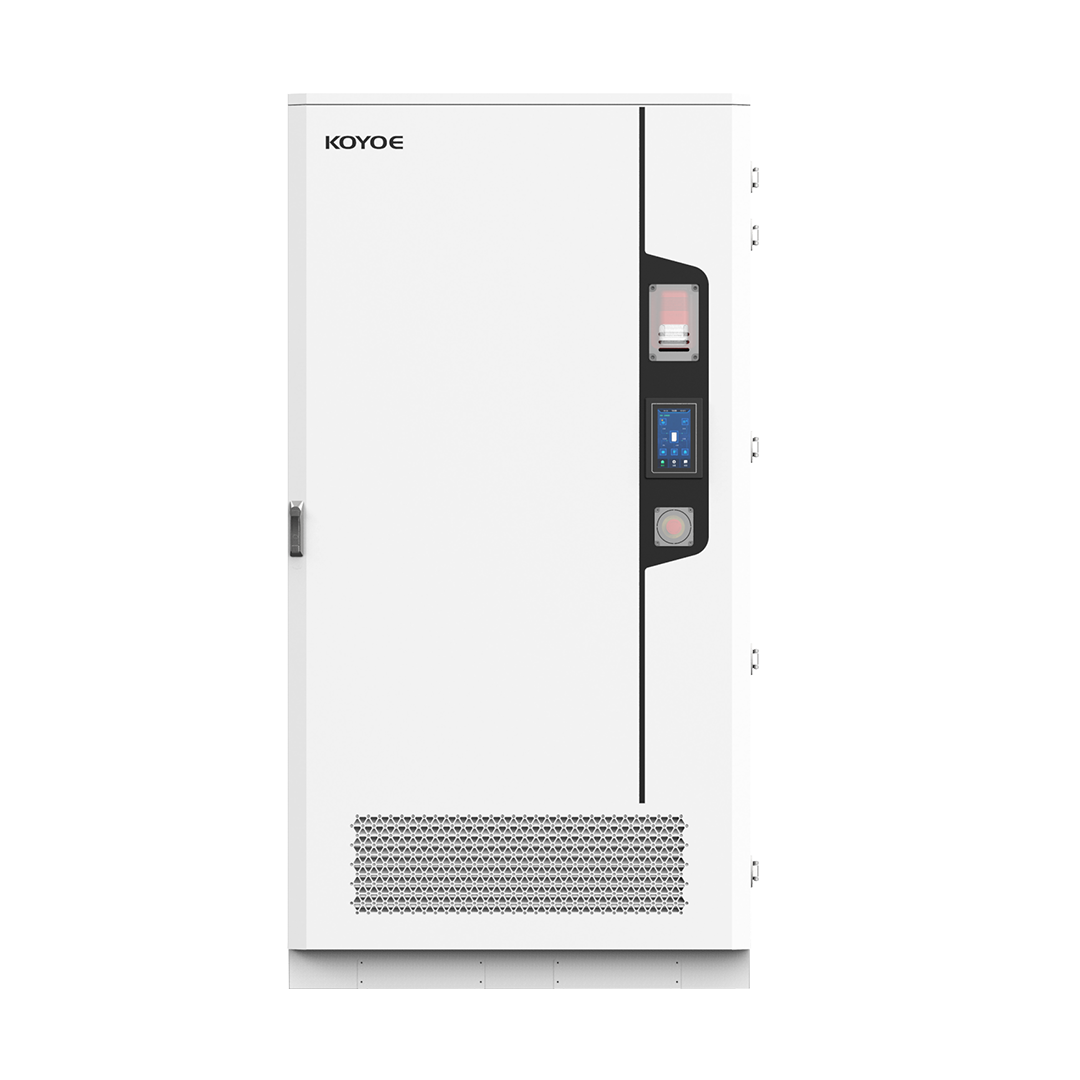

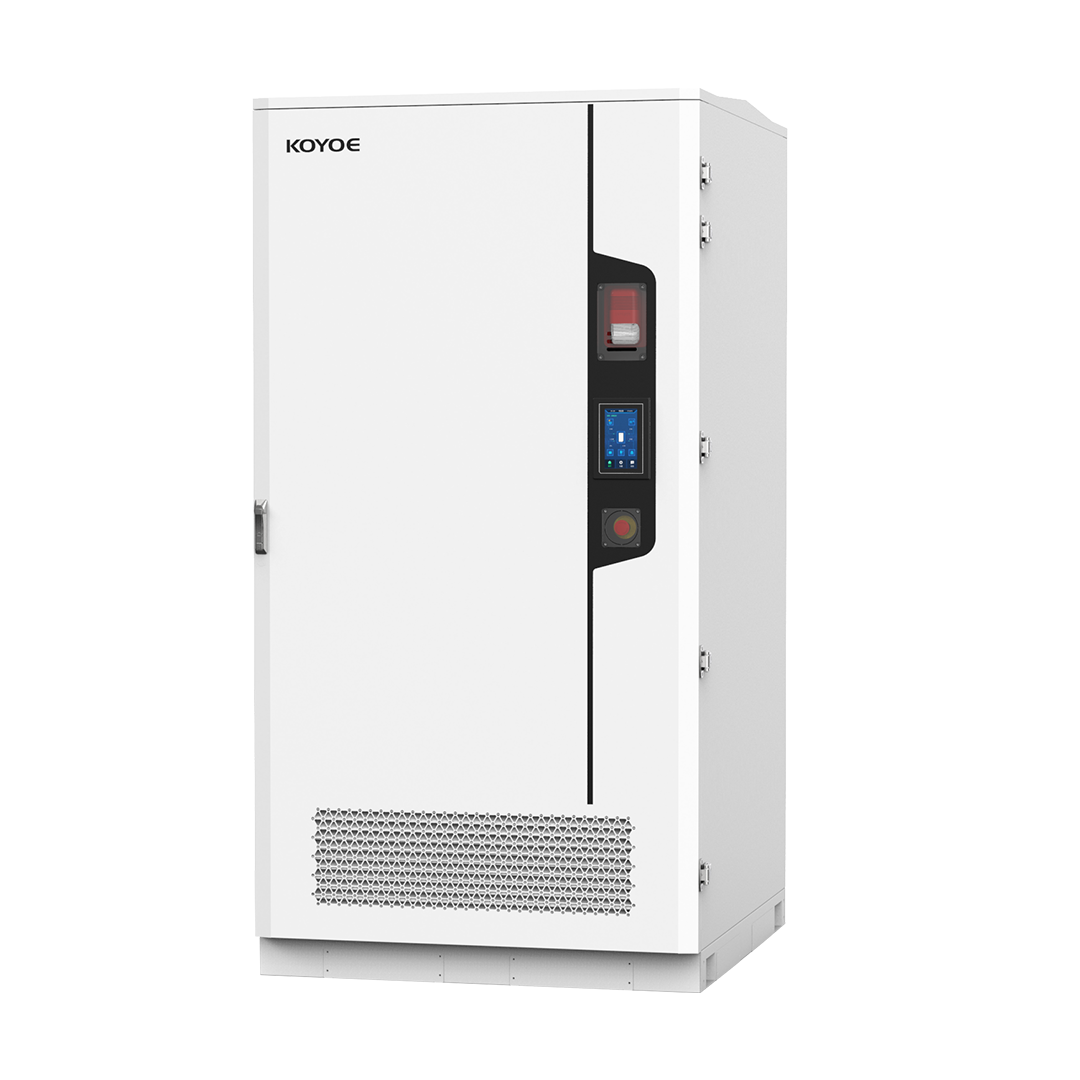

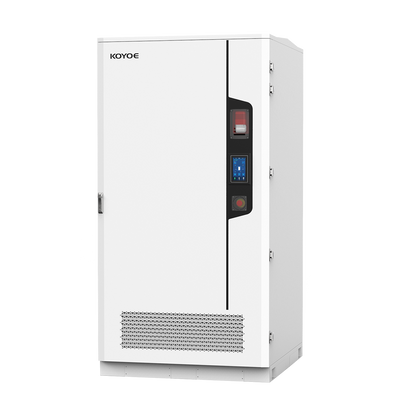

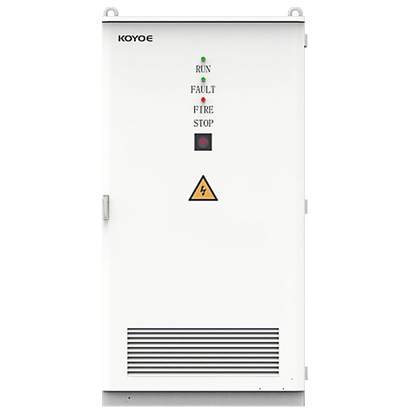

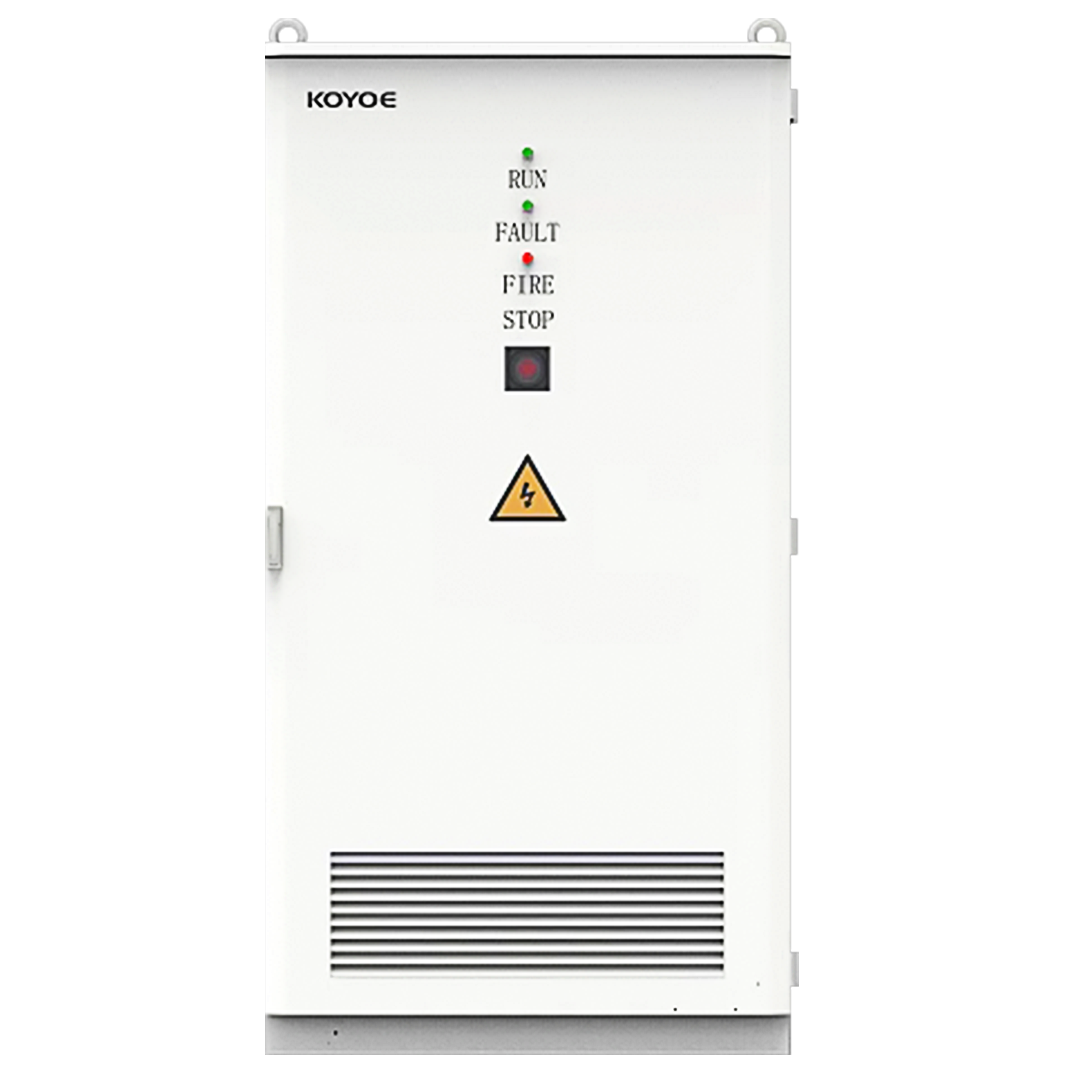

50kW-221kWh Distributed Photovoltaic EnergyStorage Hybrid System

50kW-221kWh Distributed Photovoltaic EnergyStorage Hybrid System

$0.00 USD
$0.00 USD
Sale Inquiry

Plug-in Installation:

Easy installation labor saving

Support Diesel Engine:

Optimize resource allocation Enhance power supply reliability

Four-Level Fire Protection:

Accurate monitoring to prevent problems Multiple barriers,solid protection

Multiple Systems in Parallel:

Up to 40 units can be  connected  in  parallel
*Requires parallel collectors(under grid-connected condition)



𝐍𝐨𝐭𝐞:Our shipping is via 𝐬𝐞𝐚 𝐟𝐫𝐞𝐢𝐠𝐡𝐭, with a transit time of approximately 𝟔𝟎 days. If air freight is required, please click the "Chat" button to contact us, or reach out via Phone number: 400-900-9536 / Email: info@koyoe.com

  • Plug-in Installation
  • Support Diesel Engine
  • Four-Level Fire Protection
View full details

Technical parameter

Efficiency

Effciency of System [%] 88(0.5C charge & discharge @25+2℃)

PV Input Data

Max. Input Power[W] 85000
Max. Input Voltage[V] 1000
Operating Voltage Range[V] 180~900
Max. Input Current[A] 36/36/36/36
Max. Short Circuit Current[A] 42/42/42/42
Number of MPPT Trackers 4
Number of Strings per MPPT 2/2/2/2
MPPT Efficiency [%] 99.99

Battery Data

Battery type LFP
Nominal Voltage[V] 704
Working voltage range[V] 616~803
Battery model KY-64V314AH
Max. Charge/Discharge Power[W] 50000
Cycle cell ≥8000 cycles, 25±2℃，0.5℃，90%DOD，70%EOL
Nominal Charge/Discharge Current[A] 71/71
Number of Batteries 11
Single Battery Capacity[kWh] 20.09
Nominal Capacity[kWh] 211
90%DODAvailable Capacity[kWh] 199

AC Data(On-grid interface)

Nominal Output Power[W] 50000
Max. Apparent Output Power [VA] 55000
Max Input Power[W] 60000
Nominal Output Voltage[Vac] 380/400V,3L/N/PE
Nominal Output Frequency[Hz] 50/60
Max. Output Current[A] 79
Max. Three-phase Unbalanced Output Current[A] 79
Power grid bypass current[A] 87
Power Factor ~1 (0.8 lead to 0.8 lag can be set)
Total Harmonic Distortion[%] <3

AC Data(Off-grid Interface)

Nominal Output Power[W] 50000
Max. Apparent Power [VA] 55000
Nominal Output Voltage[Vac] 380/400V,3L/N/PE
Nominal Output Frequency[Hz] 50/60
Max. Three-phase Unbalanced Output Current[A] 79
Max. Output Single-phase Apparent Power[VA] 18000
Peak Output Apparent Power[VA](60s) 60000
Peak Output Apparent Power[VA](10s) 75000
On/off Grid switching time[ms] <10

General Data

Operating Temperature Range (°C) -20~50（>45 derating）
Altitude(m) <2000
Ingress Protection Rating IP54
Relative Humidity(%) 0~95, No condensation
Dimension(W*H*D)(mm) 1200*1578*2340
Weight [kg] 2250

Certification

Safety Standards IEC/EN 62109-1/-2
EMC Standards IEC/EN 61000-6-1/-2/-3/-4
On-grid Standard CEI 0-21,NRS097-2-1:2017,VDE-AR-N 4105:2018,CQC 3310-2014

Temperature Control System

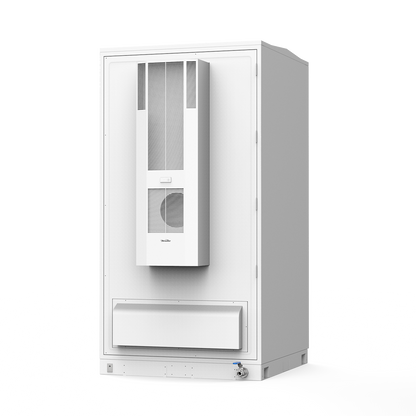

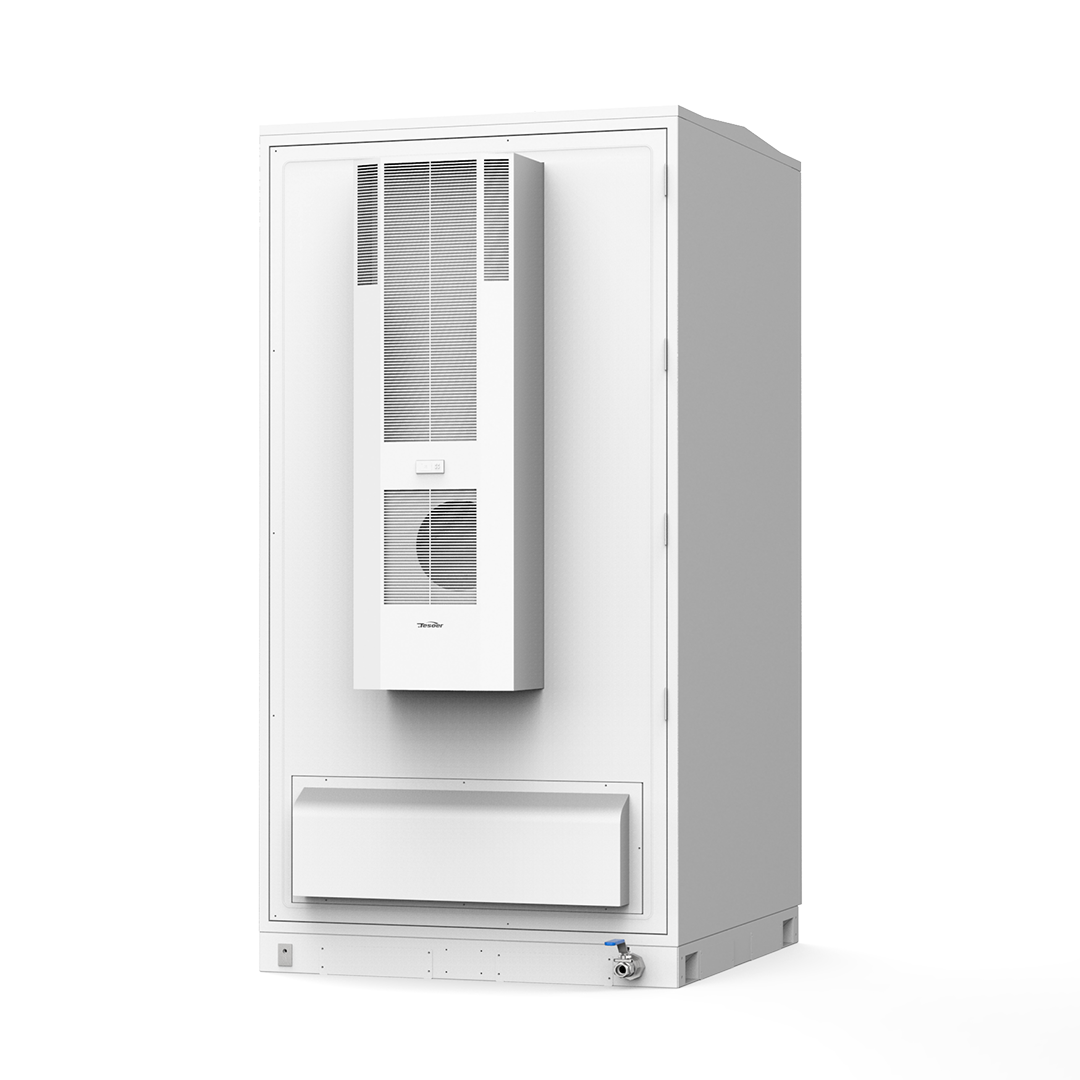

Temperatue Control System Intelligent air conditioning

Fire Fighting System

Active Detector+Condensed aerosol fre extinguishing device+water fire protection
Passive Condensed aerosol fre extinguishing device
Explosion-proof Passive presure explosion-proof valve

AC Data(Diesel Gen.)

Nominal Voltage[Vac] 380/400V,3L/N/PE
Nominal Frequency[Hz] 50/60
Nominal Input Apparent Power[VA] 50000
