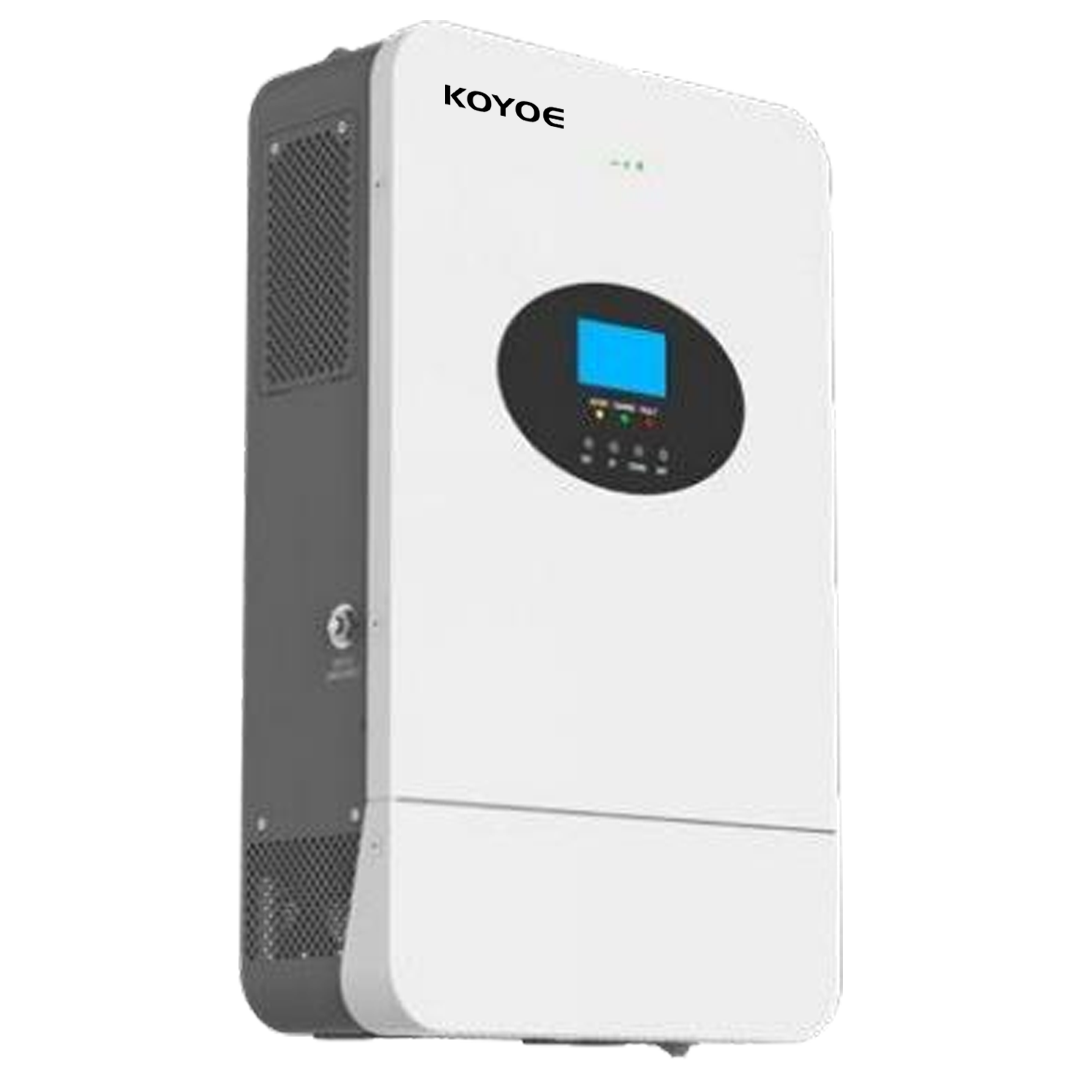

3kW Solar Storage Inverter-US

3kW Solar Storage Inverter-US

Regular price $311.34 USD
Regular price Sale price $311.34 USD
Sale Inquiry

Adopt DSP full digital control mode
If the photovoltaic power is insufficient, the photovoltaic can be combined with the power grid and battery to supply the load
High precision MPPT controller
The battery has a balanced charging mode
Battery can use PV maximum to input voltage 500Vdc or not use
Both are configured the grid and PV prioritize
Monitoring system WIFI/GPRS option
Economic model can be used to charge and discharge the inverter
Power grid and oil machine can be freely selected

𝐍𝐨𝐭𝐞:Our shipping is via 𝐬𝐞𝐚 𝐟𝐫𝐞𝐒𝐠𝐑𝐭, with a transit time of approximately πŸ”πŸŽ days.Β If air freight is required, please click the "Chat" button to contact us, or reach out via Phone number: 400-900-9536 / Email: info@koyoe.com

    View full details

    Technical parameter

    PV Input Data

    Maximum PV Input Power 4000W
    MPPT Range @ Operating Voltage 120VDC - 450VDC
    Maximum PV Input Current 13A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
    Maximum PV Open-circuit Voltage 500VDC
    Maximum Solar Charge Current 80A

    Battery Data

    Battery Voltage 24VDC
    Hybrid Charging Maximum Charging Current 80A
    Battery Type Lithium/Lead-acid

    AC Data(Off-grid Interface)

    Rated Power 3000W
    Parallel Capability NO
    AC Voltage Regulation 120VAC Β± 5% @ 50/60Hz
    Surge Power 6000VA
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 10ms typical, 20ms Max

    Certification

    UL1741/FCC
