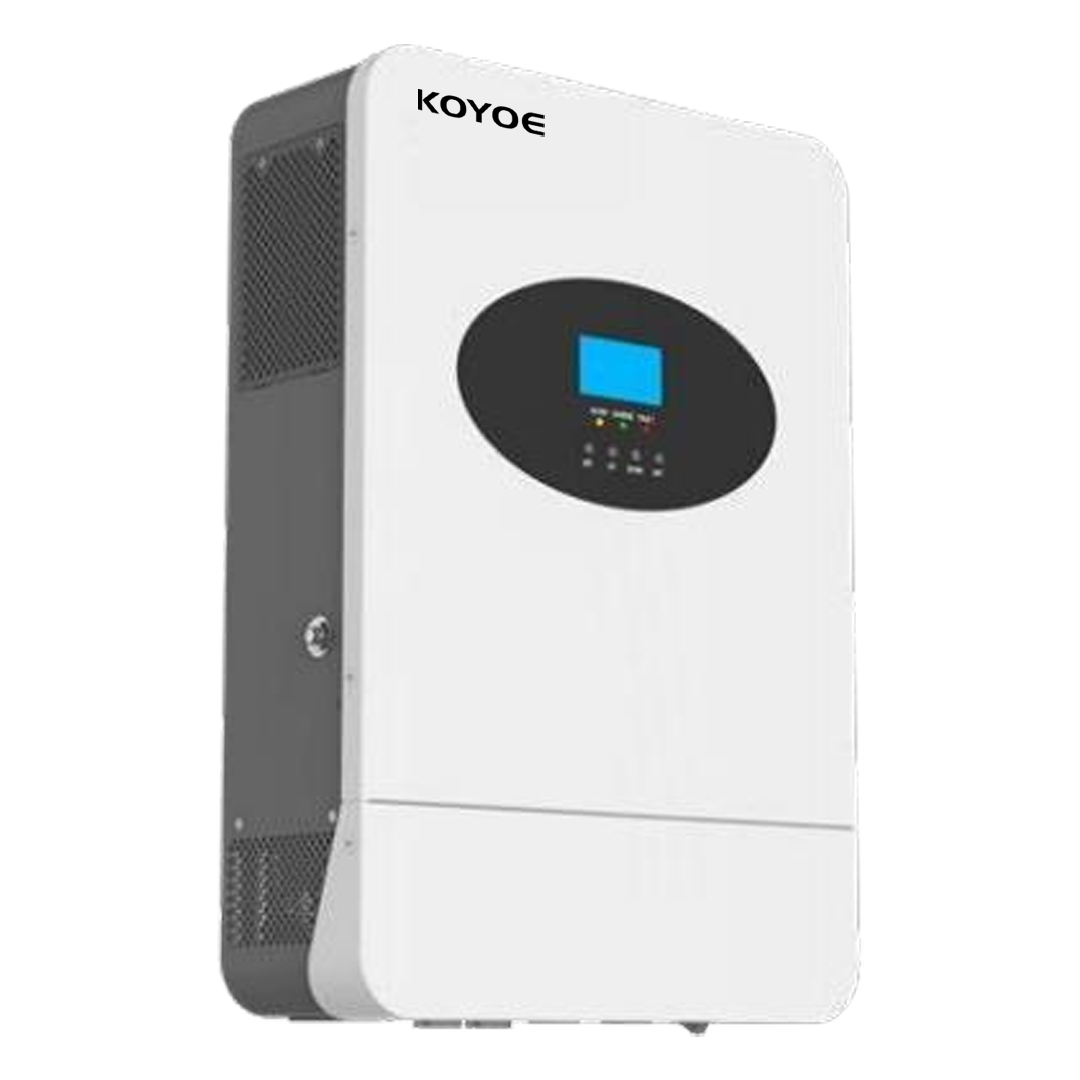

5.6kW Solar Storage Inverter-EU

5.6kW Solar Storage Inverter-EU

Regular price $322.39 USD
Regular price Sale price $322.39 USD
Sale Inquiry

Adopt DSP full digital control mode
Support 6 machines in parallel, constitute three-phase four-wire power generation system
High precision MPPT controller
Adopt an intelligent adjustable-speed fan for efficient heatdissipation and prolong the service life of the system
Battery can use PV maximum to input voltage 500Vdc or not use
Both are configured the grid and PV prioritize
Monitoring system WIFI/GPRS option
Economic model can be used to charge and discharge the inverter
lt has a power-saving mode function to reduce no-load loss

𝐍𝐨𝐭𝐞:Our shipping is via 𝐬𝐞𝐚 𝐟𝐫𝐞𝐒𝐠𝐑𝐭, with a transit time of approximately πŸ”πŸŽ days.Β If air freight is required, please click the "Chat" button to contact us, or reach out via Phone number: 400-900-9536 / Email: info@koyoe.com

    View full details

    Technical parameter

    PV Input Data

    Maximum PV Input Power 5500W
    MPPT Range @ Operating Voltage 120VDC - 450VDC
    Maximum PV Input Current 22A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1
    Maximum PV Open-circuit Voltage 500VDC
    Maximum Solar Charge Current 100A

    Battery Data

    Battery Voltage 48VDC
    Hybrid Charging Maximum Charging Current 100A
    Battery Type Lithium/Lead-acid

    AC Data(Off-grid Interface)

    Rated Power 5600VA/5600W
    Parallel Capability Yes,6 units maximum
    AC Voltage Regulation 230VAC Β± 5% @ 50/60Hz
    Surge Power 10000VA
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 10ms typical, 20ms Max

    Certification

    IEC62109-1/2,
    EN61000-6-1/3
