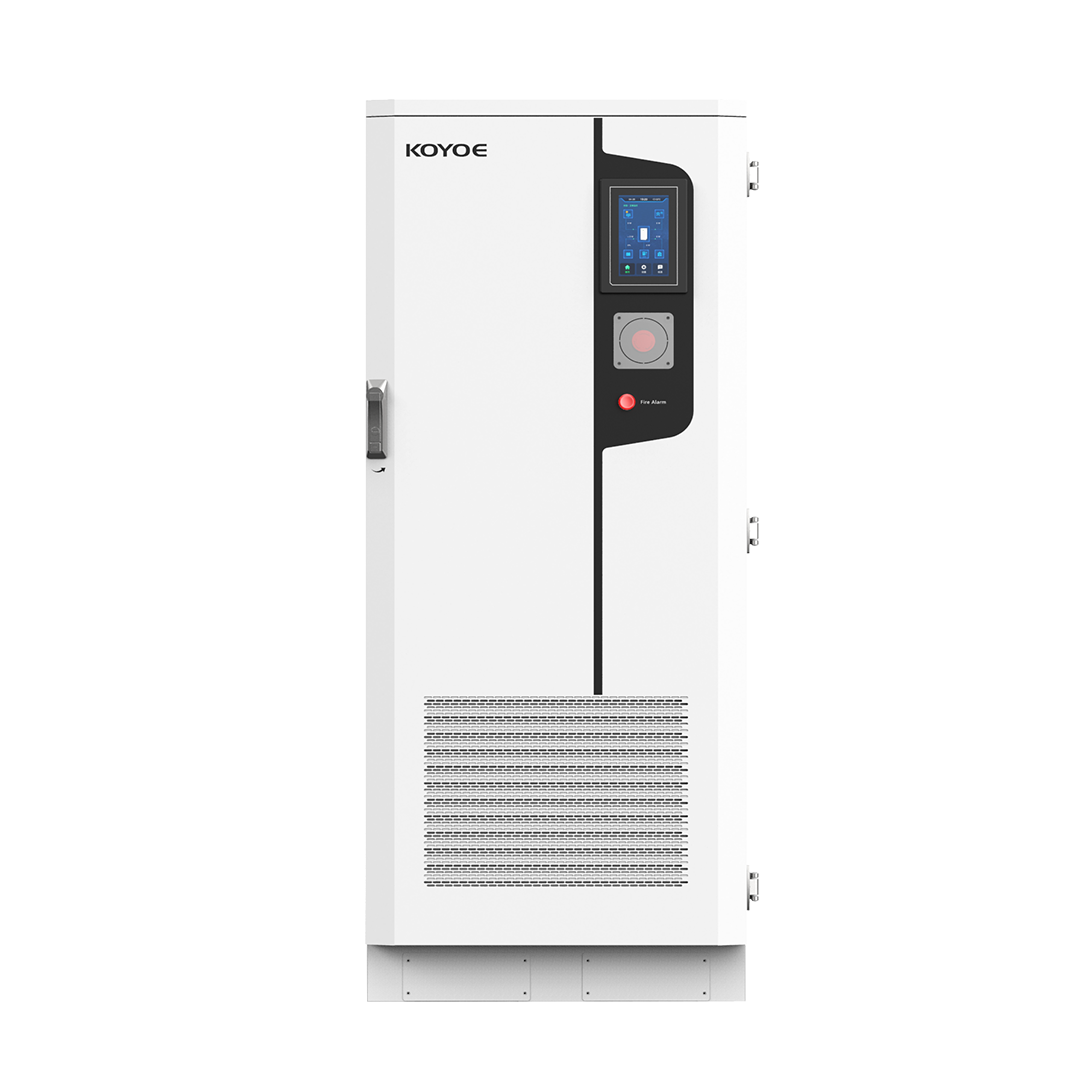

15kW-30kWh Distributed Photovoltaic Hybrid System

15kW-30kWh Distributed Photovoltaic Hybrid System

$0.00 USD
$0.00 USD
Sale Inquiry

Plug-in Installation:

Easy installation labor saving

Support Diesel Engine:

Optimize resource allocation,Enhance power supply reliability

Three-Level Fire Protection:

Battery cell fire extinguishing sticker Battery pack aerosol fire protection Energy storage cabinet active fire detector

Multiple Systems in Parallel:

Up to 40 units can be connected in parallel *Requires parallel collectors(under grid-connected condition)



𝐍𝐨𝐭𝐞:Our shipping is via 𝐬𝐞𝐚 𝐟𝐫𝐞𝐢𝐠𝐡𝐭, with a transit time of approximately 𝟔𝟎 days. If air freight is required, please click the "Chat" button to contact us, or reach out via Phone number: 400-900-9536 / Email: info@koyoe.com

  • Plug-in Installation
  • Support Diesel Engine
  • Three-Level Fire Protection
View full details

Technical parameter

Efficiency

Efficiency of system 88 (0.5C charge & discharge @25±2℃)

PV Input Data

Max. Input Power(W) 25500
Max. Input Voltage(V) 1000
Operating Voltage Range(V) 180~900
Max. Input Current(A) 36/36
Max. Short Circuit Current(A) 42/42
Number of MPPT Trackers 2
Number of Strings per MPPT 2/2
MPPT Tracking Efficiency (%) 99.99

Battery Data

Battery type LFP
Nominal Voltage[V] 304
Working voltage range[V] 268.8~350.4
Battery model KY-76V100AH
Max. Charge/Discharge Power[W] 15000
Nominal Charge/Discharge Current[A] 50/50
Number of Batteries 4
Single Battery Capacity[kWh] 7.68
Nominal Capacity[kWh] 30.72
90%DOD Available Capacity[kWh] 27.65

AC Data(On-grid interface)

Nominal Output Power(W) 15000
Max. Apparent Output Power [VA] 16500
Max Input Power(W) 30000
Nominal Output Voltage(Vac) 380/400V, 3L/N/PE
Nominal Output Frequency(Hz) 50/60
Max. Output Current[A] 24
Max. Three-phase Unbalanced Output Current[A] 33
Power grid bypass current [A] 50
Power Factor ~1(0.8 lead to 0.8 lag can be set)
Total Harmonic Distortion[%] <3

AC Data(Off-grid Interface)

Nominal Output Power[W] 15000
Max. Apparent Output Power [VA] 16500
Nominal Output Voltage[Vac] 380/400V, 3L/N/PE
Nominal Output Frequency[Hz] 50/60
Max. Three-phase Unbalanced Output Current[A] 33
Max. Output Three-phase Apparent Power[VA] 7500
Peak Output Apparent Power[VA](60s) 18000
Peak Output Apparent Power[VA](10s) 22500
On/Off grid switching time [ms] <10

General Data

Operating Temperature Range[°C] -20~50（> 45 derating）
Altitude[m] <2000
Ingress Protection Rating IP54
Relative Humidity[%] 0~95, No condensation
Dimension(W*D*H)[mm] 650*1300*1900
Weight [kg] 620

Certification

Safety Standards IEC/EN 62109-1/-2
EMC Standards IEC/EN61000-6-1/-3
On-grid Standard AS4777.2:2020,NRS097-2-1:2017,EN 50549-1 for Czech,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2,G98 G99,OVE-R25,EN50549-1:2019 for Poland A&B

Temperature Control System

Temperatue Control System Intelligent air conditioning

Fire Fighting System

Active Detector+Condensed aerosol fre extinguishing device
Passive Condensed aerosol fire extinguishing device
Explosion-proof Passive presure explosion-proof value

AC Data(Diesel Gen.)

Nominal Voltage[Vac] 380/400V, 3L/N/PE
Nominal Frequency[Hz] 50/60
Nominal Input Apparent Power[VA] 30000
