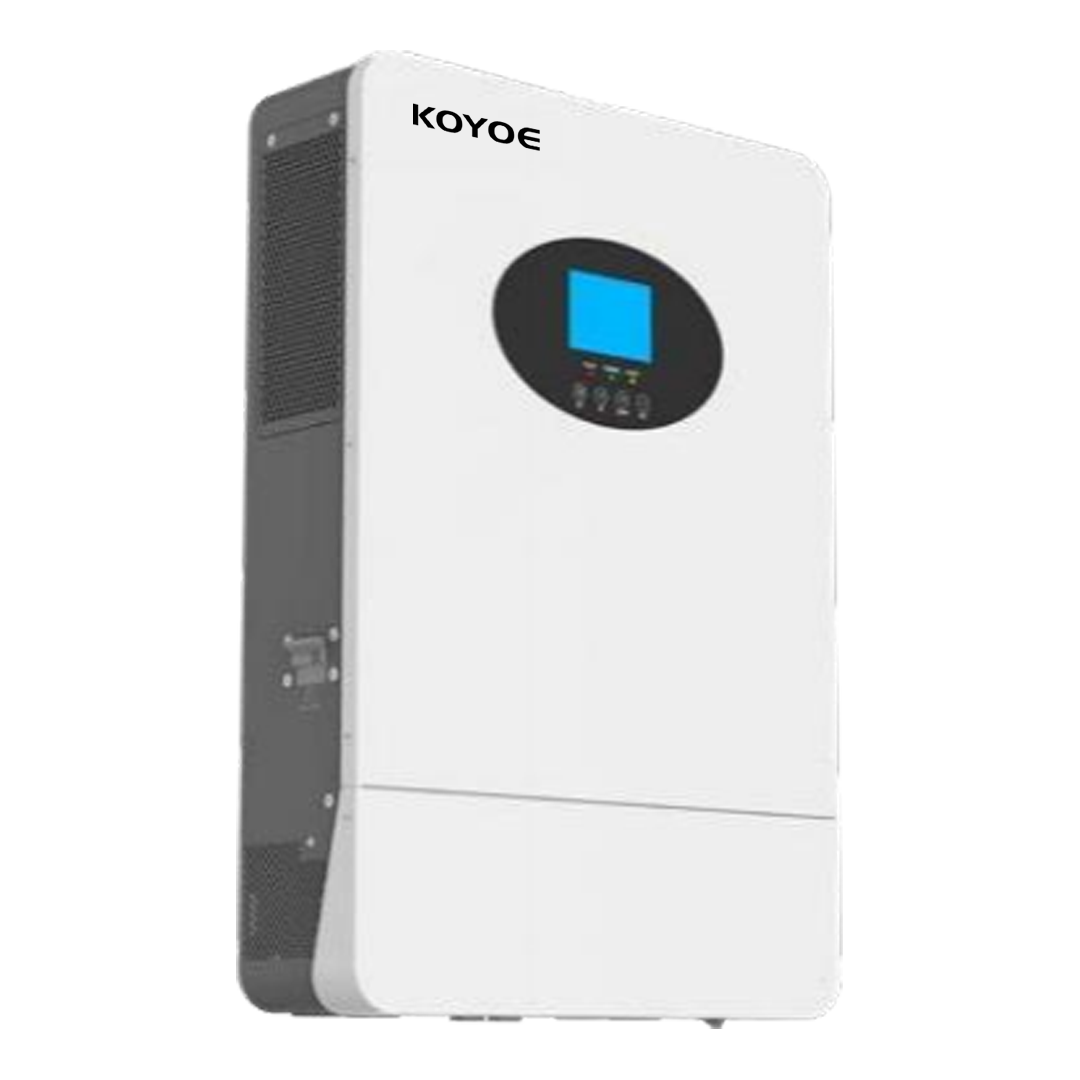

10kW Solar Storage Inverter-US

10kW Solar Storage Inverter-US

Regular price $1,002.99 USD
Regular price Sale price $1,002.99 USD
Sale Inquiry

Load power up to 10 kilowatts
High precision MPPT controller
The battery has a balanced charging mode
Battery can use PV maximum to input voltage 500Vdc or not use
6 time periods for battery charging/discharging
Monitoring system WIFI/GPRS option
Support 6 machines in parallel, constitute three-phase four-wire power generation system.
If the photovoltaic power is insufficient, the photovoltaic can be combined with the power grid and battery to supply the load
Economic model can be used to charge and discharge the inverter
Max. charging/discharging current of 200A

𝐍𝐨𝐭𝐞:Our shipping is via 𝐬𝐞𝐚 𝐟𝐫𝐞𝐢𝐠𝐡𝐭, with a transit time of approximately 𝟔𝟎 days. If air freight is required, please click the "Chat" button to contact us, or reach out via Phone number: 400-900-9536 / Email: info@koyoe.com

    View full details

    Technical parameter

    PV Input Data

    Maximum PV Input Power 2*5500W
    MPPT Range @ Operating Voltage 120VDC - 450VDC
    Maximum PV Input Current 2*22A
    Number of Independent MPP Trackers/Strings Per MPP Tracker 2/2
    Maximum PV Open-circuit Voltage 500VDC
    Maximum Solar Charge Current 200A

    Battery Data

    Battery Voltage 48VDC
    Hybrid Charging Maximum Charging Current 200A
    Battery Type Lithium/Lead-acid

    AC Data(Off-grid Interface)

    Rated Power 10000VA/10000W
    Parallel Capability Yes,6 units maximum
    AC Voltage Regulation 120/240VAC ± 5% @ 50/60Hz
    Surge Power 20000VA
    Efficiency (Peak) 93%
    Waveform Pure sine wave
    Transfer Time 10ms typical, 20ms Max

    Certification

    UL1741/FCC
