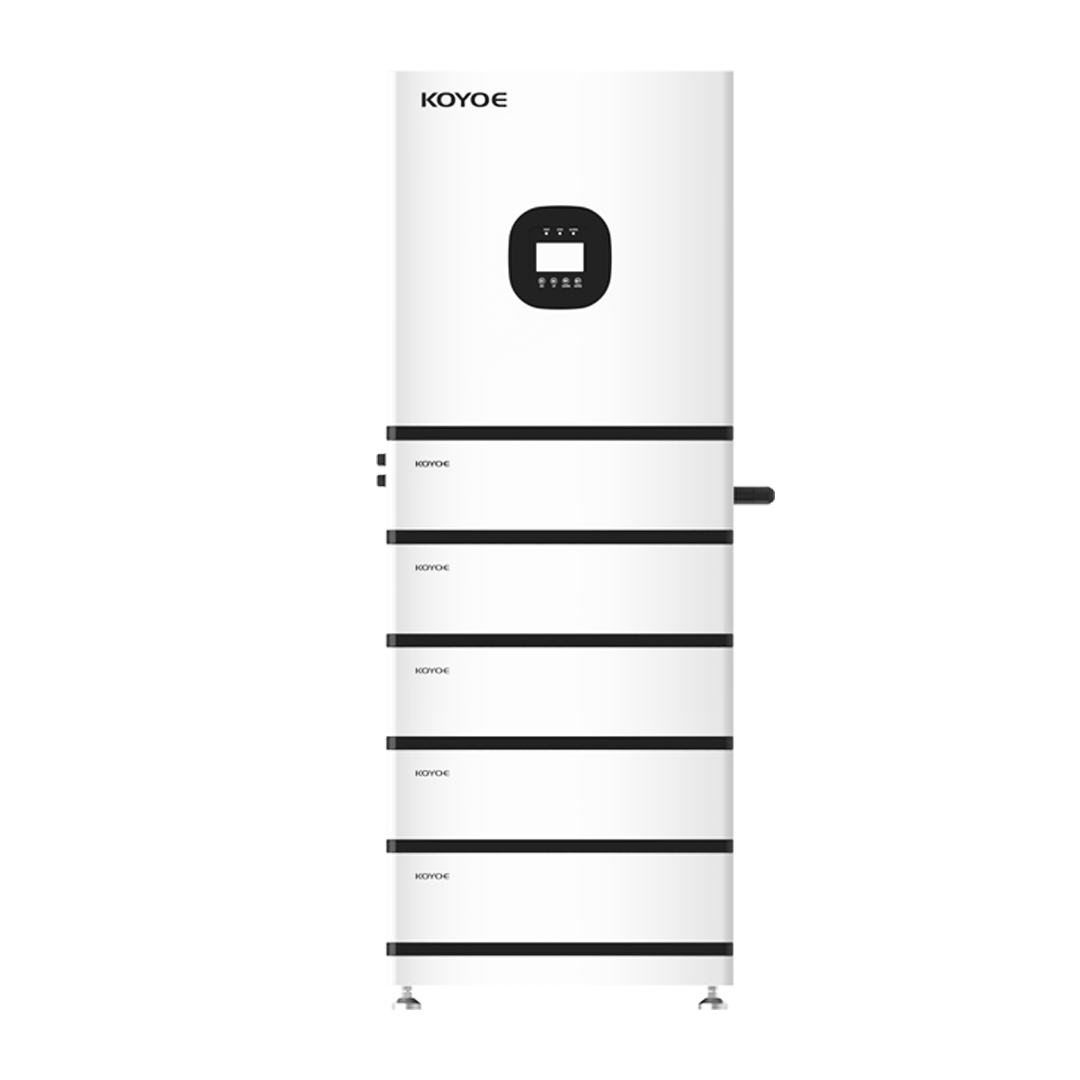

10kW-20kWh Distributed photovoltaic Storage Hybrid System (stacked)

10kW-20kWh Distributed photovoltaic Storage Hybrid System (stacked)

$5,772.98 USD
$5,772.98 USD
Sale Inquiry

Plug-in Installation:

Easy installation labor saving

Smart and friendly:

Equipped with self-developed EMS to ensure safety

Three-Level Fire Protection:

Battery cell fire extinguishing sticker Battery pack aerosol fire protection Energy storage cabinet active fire detector

Multiple Systems in Parallel:

Up to 40 units can be connected in parallel *Requires parallel collectors(under grid-connected condition)

Β

𝐍𝐨𝐭𝐞:Our shipping is via 𝐬𝐞𝐚 𝐟𝐫𝐞𝐒𝐠𝐑𝐭, with a transit time of approximately πŸ”πŸŽ days.Β If air freight is required, please click the "Chat" button to contact us, or reach out via Phone number: 400-900-9536 / Email: info@koyoe.com

  • Three-phase Five-wire Four-bridae
  • Simple atmosphere
  • Efficient power generation
View full details

Technical parameter

PV Input Data

Max. Input Power[W] 17000
Max. Input Voltage[V] 1000
Operating Voltage Range[V] 180~900
Max. Input Current[A] 18/18
Max. Short Circuit Current[A] 21/21
Number of MPPT Trackers 2
Number of Strings per MPPT 1 /1
MPPT Efficiency [%] 99.99

Battery Data

Battery type LFP
Single Working voltage range[V] 44.8~58.4
Battery model KY-51V100AH
Max. Charge/Discharge Power[W] 10000
Number of Batteries 4-6
Single Battery Capacity[kWh] 5.12
Nominal Capacity[kWh] 20.48-30.72
90%DOD Available Capacity[kWh] 18.43-27.65

AC Data(On-grid interface)

Nominal Output Power[W] 10000
Max. Apparent Output Power [VA] 11000
Max Input Power[W] 18000
Nominal Output Voltage[Vac] 380/400V,3L/N/PE
Nominal Output Frequency[Hz] 50/60
Max. Output Current[A] 16
Power Factor Range ~1(0.8 lead to 0.8 lag can be set)
Total Harmonic Distortion[%] <3

AC Data(Off-grid Interface)

Nominal Output Power[W] 10000
Max. Apparent Output Power [VA] 11000
Nominal Output Voltage[Vac] 380/400V,3L/N/PE
Nominal Output Frequency[Hz] 50/60
Peak Output Apparent Power[VA](60s) 12000
Peak Output Apparent Power[VA](10s) 15000
On/Off grid switching time [ms] <10

General Data

Operating Temperature Range[℃] 0~40
Operating Altitude[m] <2000
Ingress Protection Rating IP65
Relative Humidity[%] 0~95, No condensation
PCS+BCU+Base Dimension (W*D*H)[mm] 590*390*909
Single Battery Dimension (W*D*H)[mm] 590*390*194
Single Battery Weight[kg] 46
PCS+BCU+Base weight [kg] 77

Certification

Safety Standards IEC/EN 62109-1/-2
EMC Standards IEC/EN 61000-6-1/-3
On-grid Standard AS4777.2:2020,NRS097-2-1:2017,EN 50549-1 for Czech,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2,G98 G99,OVE-R25,EN50549-1:2019 for Poland A&B

AC Data(Diesel Gen.)

Nominal Voltage[Vac] 380/400V,3L/N/PE
Nominal Frequency[Hz] 50/60
Nominal Input Apparent Power[VA] 20000
