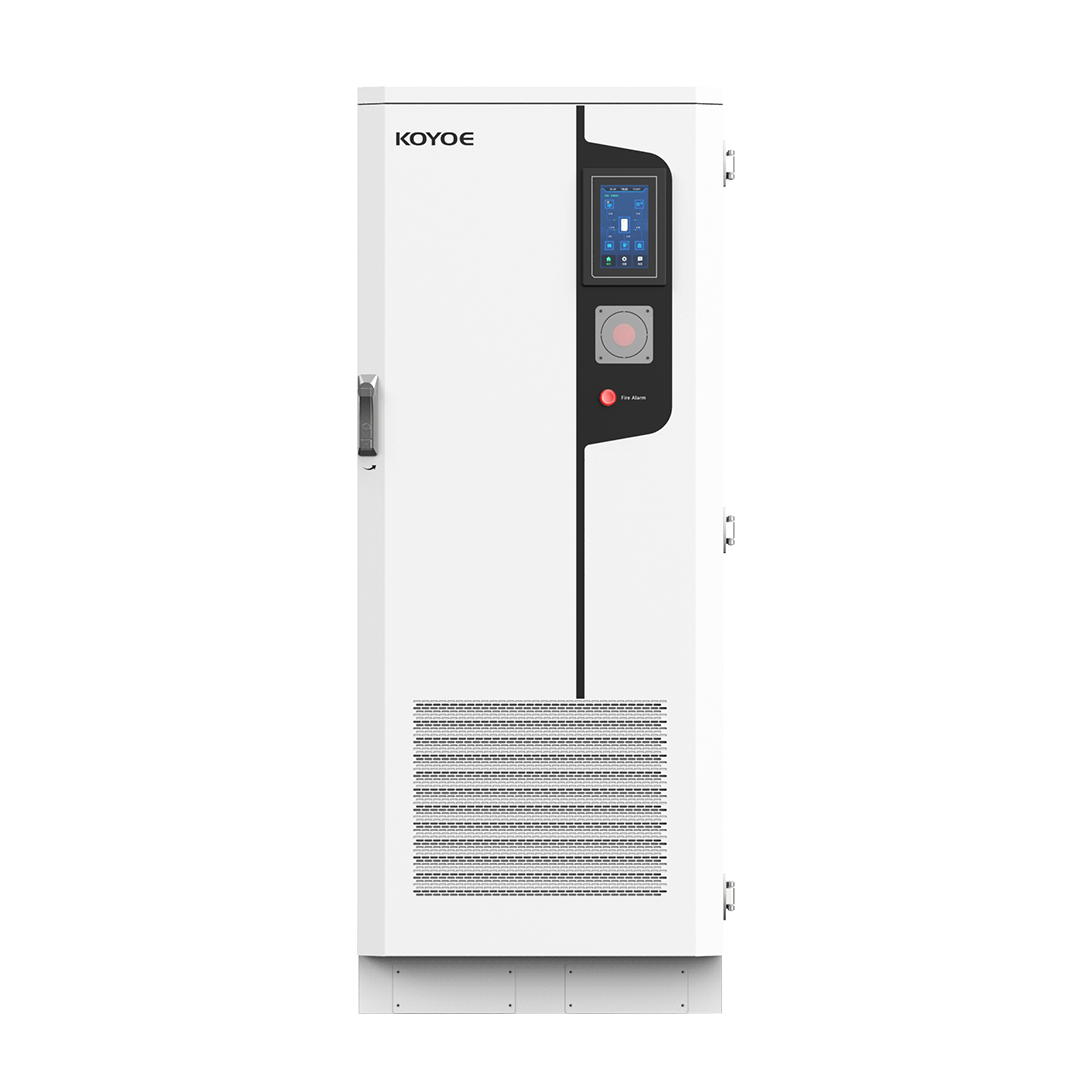

10kW-25kWh Distributed Photovoltaic Hybrid System

Max. Input Power(W) 17000

Max. lnput Voltage(V) 1000

Operating Voltage Range(V) 180~900

Max. Input Current(A) 18/18

Max. Short Circuit Current(A) 21/21

Number of MPPT Trackers 2

Number of Strings per MPPT 1/1

MPPT Tracking Efficiency (%) 99.99

Battery type LFP
Nominal Voltage[V] 255
Working voltage range[V] 224~292
Battery model KY-51V100AH
Max. Charge/Discharge Power[W] 10000
Nominal Charge/Discharge Current[A] 39/39
Number of Batteries 5
Single Battery Capacity[kWh] 5.12
Nominal Capacity[kWh] 25.60
90%DOD Available Capacity[kWh] 23.04

Nominal Output Power(W) 10000
Max. Apparent Output Power [VA] 11000
Max Input Power(W) 18000
Nominal Output Voltage(Vac) 380/400V, 3L/N/PE
Nominal Output Frequency(Hz) 50/60
Max. Output Current[A] 16
Max. Three-phase Unbalanced Output Current[A] 22
Power grid bypass current (A) 35
Power Factor ~1(0.8 lead to 0.8 lag can be set)
Total Harmonic Distortion[%] <3

Nominal Output Power[W] 10000
Max. Apparent Output Power [VA] 11000
Nominal Output Voltage[Vac] 380/400V, 3L/N/PE
Nominal Output Frequency[Hz] 50/60
Max. Three-phase Unbalanced Output Current[A] 22
Max. Output Three-phase Apparent Power[VA] 5000
Peak Output Apparent Power[VA](60s) 12000
Peak Output Apparent Power[VA](10s) 15000
On/Off grid switching time [ms] <10

Operating Temperature Range (°C) -25~50（>45 derating）

Altitude(m) <2000

Ingress Protection Rating IP54

Relative Humidity(%) 0 ~95, No condensation

Dimension(W*H*D)(mm) 650*987*1680

Weight [kg] 460

Safety Standards IEC/EN 62109-1/-2

EMC Standards IEC/EN61000-6-1/-3

On-grid Standard AS4777.2:2020,NRS097-2-1:2017,EN 50549-1 for Czech,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2,G98 G99,OVE-R25,EN50549-1:2019 for Poland A&B

Temperatue Control System Intelligent air conditioning

Active Detector+Condensed aerosol fre extinguishing device

Passive Condensed aerosol fire extinguishing device
