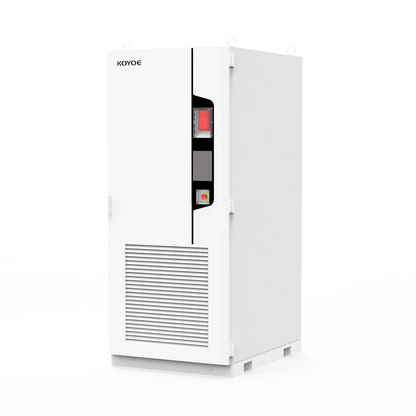

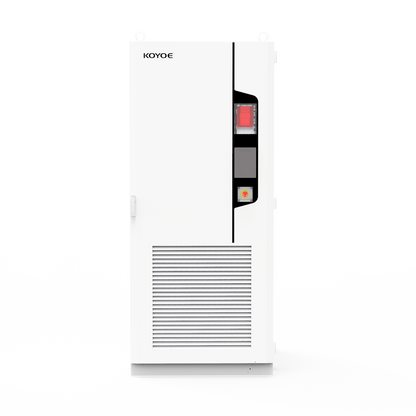

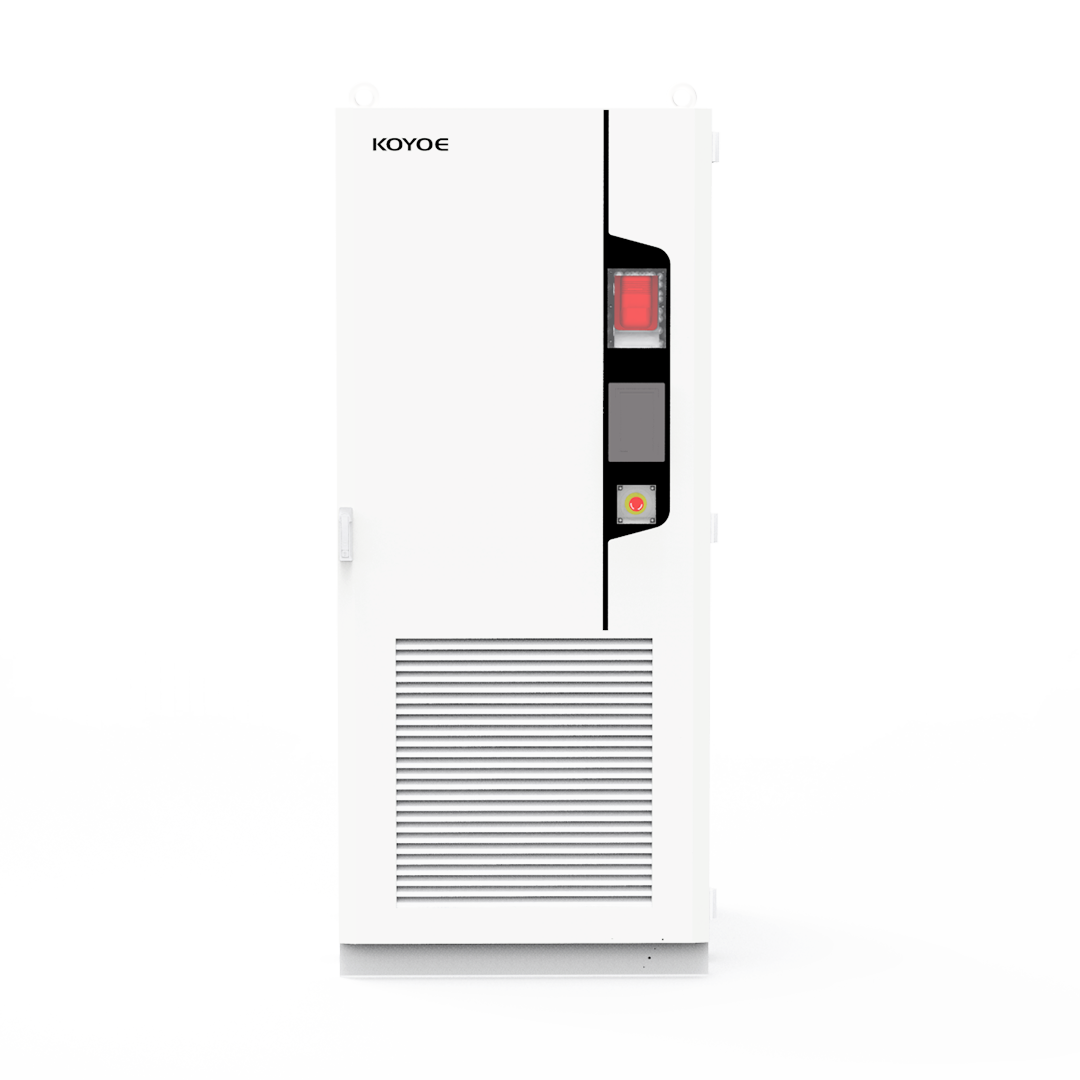

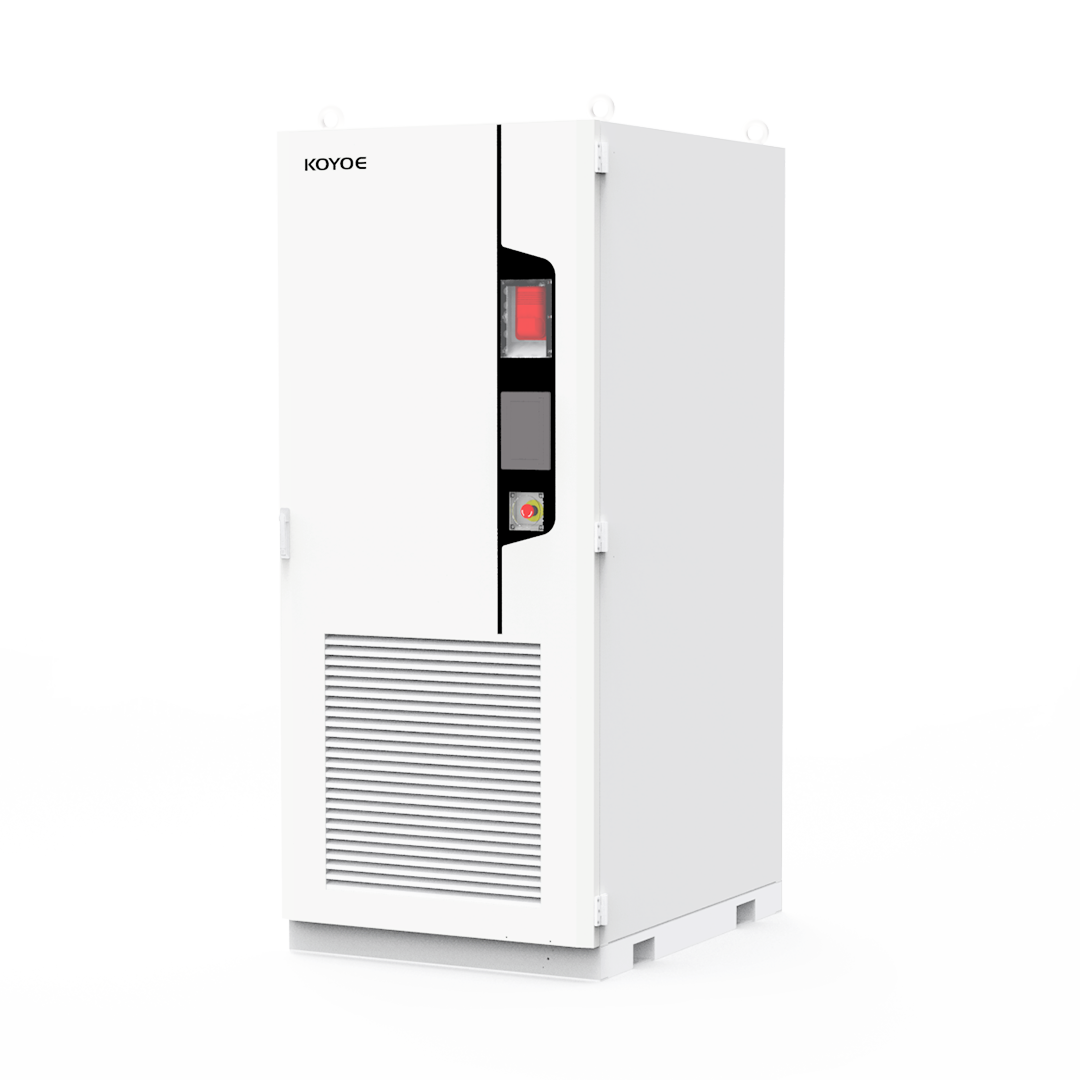

100kW-261kWh(Liquid cooling)Energy Storage

100kW-261kWh(Liquid cooling)Energy Storage

$0.00 USD
$0.00 USD
Sale Inquiry

Efficient temperature control:

Efficient heat dissipation and uniform temperature control, low noise and energy-saving,widely adaptable

Support Diesel Engine:

Optimize resource allocation Enhance power supply reliability
*External STS is required

Four-Level Fire Protection:

Accurate monitoring to prevent problems Multiple barriers,solid protection

Multiple Systems in Parallel:

Up to 40 units can be  connected  in  parallel
*Requires parallel collectors(under grid-connected
condition)

𝐍𝐨𝐭𝐞:Our shipping is via 𝐬𝐞𝐚 𝐟𝐫𝐞𝐢𝐠𝐡𝐭, with a transit time of approximately 𝟔𝟎 days. If air freight is required, please click the "Chat" button to contact us, or reach out via Phone number: 400-900-9536 / Email: info@koyoe.com

  • Efficient temperature control
  • Support Diesel Engine (*External STS is required)
  • Four-Level Fire Protection
View full details

Technical parameter

Efficiency

Efficiency of standard ambient temperature system[%] 88(0.5Ccharge & discharge@25±2°C)

Battery Data

Battery type LFP
Nominal Voltage[V] 832
Working voltage range[V] 728~949
Battery model KY-166V314AH
Max. Charge/Discharge Power[W] 100000
Cycle cell ≥8000 cycles, 25±2℃，0.5℃，90%DOD，70%EOL
Nominal Charge/Discharge Current[A] 120/120
Number of Batteries 5
Single Battery Capacity[kWh] 52
Nominal Capacity[kWh] 261
90%DODAvailable Capacity[kWh] 235

General Data

Operating Temperature Range (°C) -20~50（>45 derating）
Altitude(m) <2000
Ingress Protection Rating IP54
Relative Humidity(%) 0~95, No condensation
Maximum noise index (dB) <70
communication interface RS485/Wifi
Communication protocol Modbus
Dimension(W*H*D)(mm) 1000*1300*2457
Weight [kg] 2800
handling mode Forklift and lifting ring are available

Certification

Safety Standards IEC62109-1/-2
EMC Standards EN61000-6-1/-3,IEC61000
On-grid Standard CEI 0-21,NRS097-2-1:2017,VDE-AR-N 4105:2018，CQC 3310-2014，VDE-AR-N 4110:4120

Temperature Control System

Temperatue Control System Liquid cooled unit

Fire Fighting System

Active Detector+Novec 1230+Water Fire Protection
Passive Novec 1230
Explosion-proof Passive presure explosion-proof valve

AC Data(working with grid)

Nominal Output Power[W] 100000
Max. Apparent Power [VA] 110000
Max Input Power[W] 110000
Nominal Output Voltage[Vac] 380/400V,3L/N/PE
Nominal Output Frequency[Hz] 50/60
Max. Output Current[A] 160
Max. Three-phase Unbalanced Output Current[A] 160
Power Factor ~1 (0.8 lead to 0.8 lag can be set)
Total Harmonic Distortion[%] <3

AC Data(Used for off-grid)

Nominal Output Power[W] 100000
Max. Apparent Power [VA] 110000
Nominal Output Voltage[Vac] 380/400V,3L/N/PE
Nominal Output Frequency[Hz] 50/60
Max. Three-phase Unbalanced Output Current[A] 160
Max. Output Single-phase Apparent Power[VA] 37000
Peak Output Apparent Power[VA](60s) 120000
Peak Output Apparent Power[VA](10s) 150000
On/off Grid switching time[ms] <10
